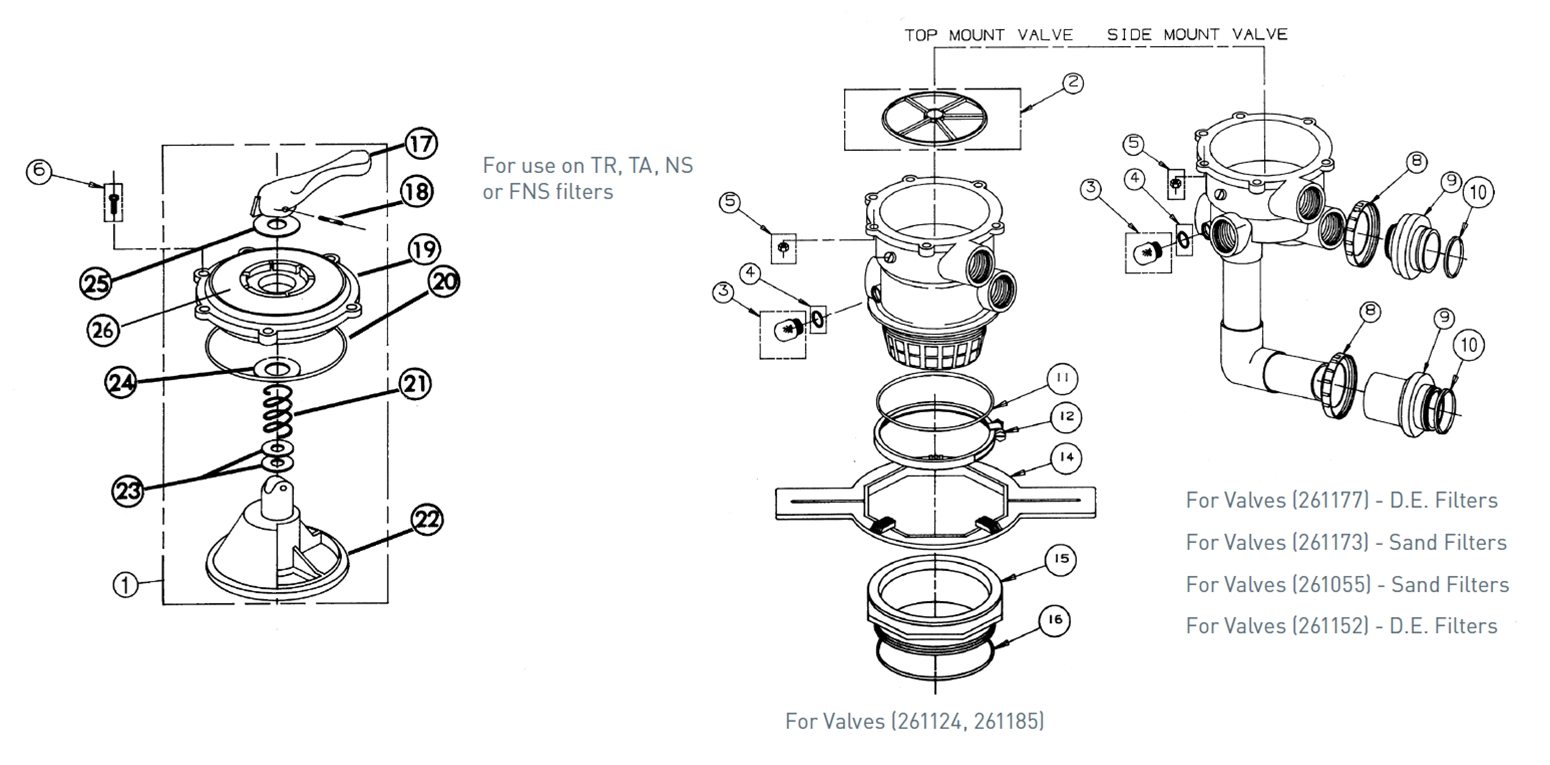

Pentair Top Mount and Side Mount Multiport Valve Parts

Details:
Pentair Pool Products Part Number 270068
1.5 Inch
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 270067
2 Inch
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 271104
1-1/2 Inch Valve
Outside Diameter: 5-3/16"
Center Hole Inside Diameter: 3/4"
Thickness: 1/4" (Top To Bottom)
Spoke Thickness: 3/16" (Side To Side)
Outside Ring Thickness: 3/16" (Side To Side)

Used On Pentair American Products 6 Position Top Mount Clamp-On Multiport Valves 501 & 5012
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 271148
6-5/8" O.D.
2 Inch Valve
Used On Pentair American Products 6 Position Top Mount Clamp-On Multiport Valves 501 & 5012
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 272550
Used On Pentair Pacfab Multiport Valves 262504, 262505, 262506

• Valves Manufactured Before March 1, 1993 Do Not Contain Item 16 Sight Glass Or Item 17 Sight Glass Gasket.

Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 271106
Used On Pentair Pacfab Multiport Valves 262504, 262505, 262506

• Valves Manufactured Before March 1, 1993 Do Not Contain Item 16 Sight Glass Or Item 17 Sight Glass Gasket.

Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 152167
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 6 Required

Details:
Pentair Pool Products Part Number 152168
M6 X 30 mm
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 6 Required

Details:
Pentair Pool Products Part Number 274407
3.5 Inch OD
Used On Pentair PacFab 2 In. Hiflow Multiport Valves 261049, 261050, 261142
Used On Pentair PacFab Top Mount and Side Mount Multiports
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters

Details:
Pentair Pool Products Part Number 274404
2 Inch Slip
Used On Pentair PacFab 2 In. Hiflow Multiport Valves 261049, 261050, 261142
Used On Pentair PacFab Top Mount and Side Mount Multiports
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters

Details:
Pentair Pool Products Part Number 274651
1.5 Inch Threaded
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 274556
2 Inch Threaded
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 274494
3/16 in. x 2-5/8 in. i.d.
Used On Pentair PacFab Tagelus Sand Filters

• TA100

Used On Pentair PacFab Triton II Sand Filters

• TR100 TR140

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters
Used On Pentair Minimax NT Std Heater with 6800 Controller (Dual Knobs)
Used On Pentair Minimax NT Std Heater with DDTC Controller (Keypad)
Used On Pentair Minimax NT Low Nox Heater with 6800 Controller (Dual Knobs)
Used On Pentair Minimax NT Low Nox Heater with DDTC Controller (Keypad)
Used On Pentair Minimax NT TSI Heater with 6800 Controller (Dual Knobs)
Used On Pentair Minimax NT TSI Heater with DDTC Controller (Keypad)
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair PacFab 2 In. Hiflow Multiport Valves 261049, 261050, 261142
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2 Required

Used On Pentair FullfloXF Backwash Valves
Used On Pentair Fullflow® Valves
Used On Pentair American Push Pull Valves

• For Bulkhead 263064

Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters

Details:
Pentair Pool Products Part Number 272541
4-3/4 ID x 3/16 Inch
Used On Pentair Sand Dollar Filters
Used On Pentair PacFab Tagelus Sand Filters

• TA30D TA35D TA40D TA50D TA60D

Used On Sta-Rite Cristal-Flo II Sand Filters
Used On Pentair 263085, 262525 2 Inch 6 Position Top Mount Clamp-On Multiport Valves
Used On Pentair Pacfab Multiport Valves 262504, 262505, 262506
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 1.5 Inch

Used On Pentair American Meteor Sand Filter Systems after 2009

Details:
Pentair Pool Products Part Number 275333
3/16 in. x 6-1/2 in. i.d
Used On Pentair PacFab Tagelus Sand Filters

• TA100 TA100D

Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2 Inch

Details:
Pentair Pool Products Part Number 152165
6-1/2 in. dia
Used On Pentair Sand Dollar Filters
Used On Pentair PacFab Tagelus Sand Filters

• TA30D TA35D TA40D TA50D TA60D

Used On Sta-Rite Cristal-Flo II Sand Filters
Used On Pentair Pacfab Multiport Valves 262504, 262505, 262506
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 1.5 Inch

Used On Pentair American Meteor Sand Filter Systems after 2009
Used On Pentair American Products Meteor Sand Filter Systems before 2009

• Used on filters manufactured after 6-2004

Details:
Pentair Pool Products Part Number 152130
8.35 in. dia.
Used On Pentair PacFab Tagelus Sand Filters

• TA100 TA100D

Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2 Inch

Details:
Pentair Pool Products Part Number 154512
6.5 Inch Across
Used On Pentair PacFab Tagelus Sand Filters

• TA30D TA40D TA50D TA60D

Used On Pentair PacFab Triton II Sand Filters

• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Used On Pentair PacFab Top Mount and Side Mount Multiports

• Flanged Valve 1-1/2 Inch

Details:
Pentair Pool Products Part Number 151608
9 Inch Across
Used On Pentair PacFab Tagelus Sand Filters
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 155225
6 in. “V” thread

• Used On Pentair PacFab Tagelus Sand Filters
• TA30D TA35D TA40D TA50D TA60D
• Lubricate O-ring liberally w/ silicone lubricant and tighten to following spec: TA30D, 35D, 40D, 50D, 60D. Handtight plus 1/4 turn min. TA100 D  Handtight plus 3/4 turn min.
• Tagelus Clamp Filter models TA30D, 40D, 50D,  60D manufactured before Nov. 1, 1991 were  manufactured w/a “V” thread top opening and utilize a “V” thread valve adptr. P/N 155225, see Detail B. DO NOT ATTEMPT TO INTERCHANGE THREAD TYPES.

Used On Pentair PacFab Top Mount and Side Mount Multiports

• Flanged Standard Thread 1-1/2 In.

Details:
Pentair Pool Products Part Number 152520Z replaces 154555
6 in. Buttress  thread
Used On Pentair PacFab Tagelus Sand Filters

• TA30D TA35D TA40D TA50D TA60D
• Lubricate O-ring liberally w/ silicone lubricant and tighten to following spec: TA30D, 35D, 40D, 50D, 60D. Handtight plus 1/4 turn min. TA100 D  Handtight plus 3/4 turn min.
• Tagelus Clamp Filter models TA30D, 35D, 40D, 50D, 60D manufactured after Nov. 1, 1991 were  manufactured w/a btr. thread top opening and utilize a btr. thread valve adptr. P/N 154555, see Detail A. DO NOT ATTEMPT TO INTERCHANGE THREAD TYPES.

Used On Pentair PacFab Top Mount and Side Mount Multiports

• Flanged Buttress 1-1/2 In.

Details:
Pentair Pool Products Part Number 154521
8-1/2 in. Buttress Thread
Used On Pentair PacFab Tagelus Sand Filters

• TA100 TA100D

Used On Pentair PacFab Top Mount and Side Mount Multiports

• Flange Buttress Thread 2 In.

Details:
Pentair Pool Products Part Number 154493
.157 in. x 5.75 in. i.d.
Used On Pentair PacFab Tagelus Sand Filters

• TA30 TA30D TA35 TA35D TA40 TA40D TA50 TA50D TA60

Used On Pentair PacFab Triton II Sand Filters

• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Used On Pentair Pacfab Multiport Valves 262504, 262505, 262506
Used On Pentair PacFab Top Mount and Side Mount Multiports

• Flanged Valve Adapter 1-1/2 In.

Details:
Pentair Pool Products Part Number 152501
1/8 x 8.25 ID
Used On Pentair PacFab Top Mount and Side Mount Multiports

• Flanged 2 Inch

Details:
Pentair Pool Products Part Number 271156
Used On Pentair American Products 6 Position Top Mount Clamp-On Multiport Valves 501 & 5012
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 271164
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 271158
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 1.5 Inch

Details:
Pentair Pool Products Part Number 271165
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 1.5 Inch

Details:
Pentair Pool Products Part Number 271166
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2 Inch

Details:
Pentair Pool Products Part Number 271169
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2 Inch

Details:
Pentair Pool Products Part Number 271103
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 1.5 Inch

Details:
Pentair Pool Products Part Number 271151
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2 Inch

Details:
Pentair Pool Products Part Number 271161
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 271163
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 1.5 Inch

Details:
Pentair Pool Products Part Number 271168
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2 Inch

Details:
Pentair Pool Products Part Number 191479
7/8 x 1-1/8 x 1/8
Used On Pentair American Products 6 Position Top Mount Clamp-On Multiport Valves 501 & 5012
Used On Pentair American Products 5 and 8 Position Top Mount Clamp-On Multiport Valves 50115100,50118100,50118200,50118300
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2 Required

Used On Pentair Star™ Polymeric Filter Systems

Details:
Pentair Pool Products Part Number 271160
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Products Part Number 271157
Used On Pentair PacFab Top Mount and Side Mount Multiports

Details:
Pentair Pool Item Number 273207
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2" DE Filter Valve for use on 261152

Details:
Pentair Pool Item Number 273207
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 1-1/2" DE Valve for use on 261177

Details:
Pentair Pool Item Number 273208
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2" Sand Filter Valve Label for use on 261055 and 261185
