Pentair Pumps

Details:

Pentair Pool Internet Line Part Number: EC-011057

IntelliFlo VS+SVRS Variable Speed Pump

Variable Speed Pool Pump With Built-in Safety System

IntelliFlo pumps combine variable speed technology, onboard digtital intelligence and permanent magnet motors (used in hybrid cars) to reduce pump-related energy costs by up to 90%*. The IntelliFlo VS+SVRS pump models were the first swimming pool pumps to feature a built-in Safety Vacuum Release System that detects drain blockage and automatically shuts the pump off.

    Ability to program exact pump speeds for specific operations – filtering, heating, cleaning, spa jets, water features and more
    SVRS complies with Virginia Graeme Baker Safety Act
    Built-in diagnostics protect the IntelliFlo pump from the most common causes of premature failure – overheating, freezing, and voltage irregularities.
    Includes priming protection. No SVRS calibrations needed. Built-in SVRS cannot be turned off.
    Safety lock-out feature (password protected) prevents pump speed settings from being changed by unauthorized personnel
    Ability to set minimum and maximum speeds so pump will only operate within the ranges set to help assure safe operation and long life
    Compatible with Pentair Automation Systems
    Compliant with the current ASME A112.19.17 Standard for Safety Vacuum Release Systems (SVRS)
    Operates seamlessly on 50 hz or 60 hz input power. Flow/speed are constant when operating on 50hz or 60 hz.
    WEF 6.9 THP 3.95

Details:

Pentair Pool Internet Line Part Number: EC-348200

Pentair OptiFlo® Aboveground Pool Pump Horizontal Discharge with 3' Standard Plug

Reliability and Versatility for Aboveground Pools

OptiFlo pumps for aboveground pools feature a revolutionary design that delivers dependable high flow performance. The OptiFlo pump features a 48 frame-thru bolt motor, easy access to change the discharge port position, service the impeller, and an innovative Cam and Ramp lid.

    Proprietary Totally Enclosed Fan-Cooled (TEFC) motor available on updated models
    Large strainer basket
    Cam and Ramp™ Lid lock
    Unionized discharge port connection
    DOE compliant models available

Details:

Pentair Pool Internet Line Part Number: EC-348196

Pentair OptiFlo® Aboveground Pool Pump Vertical Discharge with 3' Standard Plug

Reliability and Versatility for Aboveground Pools

OptiFlo pumps for aboveground pools feature a revolutionary design that delivers dependable high flow performance. The OptiFlo pump features a 48 frame-thru bolt motor, easy access to change the discharge port position, service the impeller, and an innovative Cam and Ramp lid.

    Proprietary Totally Enclosed Fan-Cooled (TEFC) motor available on updated models
    Large strainer basket
    Cam and Ramp™ Lid lock
    Unionized discharge port connection
    DOE compliant models available

Details:

Pentair Pool Internet Line Part Number: EC-348190

SuperFlo® High Performance Pump

Strong Performance and Staying Power, Now with DOE Compliant Options

Pentair is proud to announce updates to the line of SuperFlo High Performance Pumps. We've added the first and only single-speed pump models to use NEMA Premium® Efficient motors for pool applications.* The new and improved SuperFlo DOE compliant pumps are designed to help save electricity and optimize hydraulic horsepower without sacrificing performance.

    Available high-quality proprietary Totally Enclosed Fan-Cooled (TEFC) motor for a long, worry-free life.
    Enhanced design and balanced flow enable greater efficiency and reduced operating costs.
    Improved design that stands up to demanding installations and conditions.
    1.5” internal slip (2” external slip) and quick-disconnect plumbing union for faster disassembly, making it a summer breeze to service.
    Cam and RampTM Lid permits easy inspection and cleaning of the strainer basket.
    SuperFlo pumps are a high-performing drop-in replacement for the Hayward® Super Pump.†

Volts: 115/208-230
Amps: 10.5/5.5-5.4
THP: 1.10
WEF: 3.60
HHP: 0.63
SF: 1.0
Port Size: 1-1/2"
DOE Compliant: YES

Details:

Pentair Pool Internet Line Part Number: EC-342001

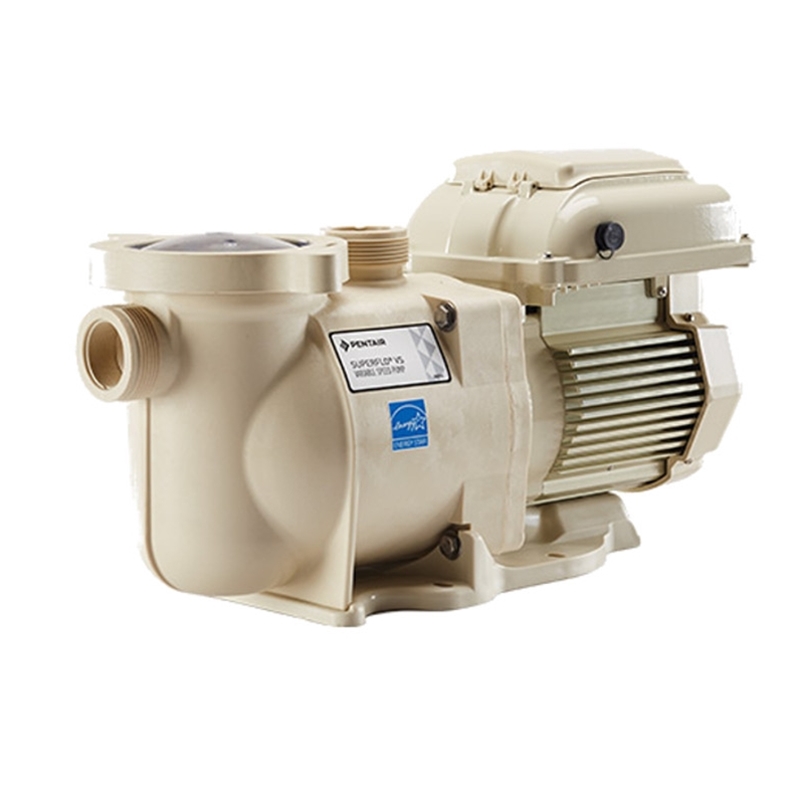

SuperFlo® VST Pool Pump

The Superior Replacement Pool Pump with TradeGrade Designation

The SuperFlo VST Variable Speed Pool Pump features sophisticated technology in a simple to operate pump. Designed for pool owners who are practical and like to save, the SuperFlo VST pump has a dependable and robust Totally Enclosed Fan Cooled motor and can adapt to 115V to 230V and 50hz or 60hz power with no special wiring or switching.

    Improved mechanical seal for long, dependable performance
    Superior drop-in replacement for the Hayward® Super Pump® and existing Pentair SuperFlo pumps
    Ideal for new and standard pool pump replacement for pools requiring up to a 1.5 HP pump
    Simple, easy-to-use digital control keypad with three programmable speeds, override capability and a real-time, 24-hour clock
    115v: WEF 7.3  THP  2.2
    230v: WEF 9.0  THP  2.2
    New RS-485 connectivity for improved interface with automation systems and IoT devices to allow more flexibility

Details:

Pentair Pool Internet Line Part Number: EC-LA01N

Pentair Universal Pool Cleaner Booster Pump

The Best Booster Pump for Your Pressure-side Pool Cleaner

Combines ultimate performance with efficiency for pressure-side pool cleaner ease. The 3/4 HP boosterpump is made from durable, corrosion-proof materials, and provides 50 psi at 12 GPM.

    Use with Legend Platinum, Legend Platinum Truck Series, and Legend Automatic Pool Cleaners
    Hose and adapters included
    Ideal replacement for pressure-side Booster pumps

Details:

Pentair Pool Internet Line Part Number: EC-015583

WhisperFlo® High Performance Pump

Proven Performance and Durability, Now DOE Compliant

Pentair is proud to announce updates to the line of WhisperFlo High Performance Pumps. We've added the first and only single-speed pump models to use NEMA Premium® Efficient motors for pool applications.* The new and improved WhisperFlo DOE compliant pumps are designed to help save electricity and optimize hydraulic horsepower without sacrificing performance.

    Available high-quality proprietary Totally Enclosed Fan-Cooled (TEFC) motor for a long, worry-free life.
    Enhanced design and balanced flow enable greater efficiency and reduced operating costs.
    Improved design that stands up to demanding installations and conditions.
    2” NPT suction and discharge ports.
    Cam and RampTM Lid permits easy inspection and cleaning of the strainer basket.
    Model meets DOE minimum efficiency requirements.

Details:
Pentair Pool Internet Line Part Number: EC-011533
WhisperFlo® VST Variable Speed Pool Pump

The WhisperFlo® VST Variable Speed Pool Pump is available now to keep pools running smoothly. This durable pump offers more power than SuperFlo® VST Pool Pump. And your energy bill will appreciate the upgrade, too.

    Variable speed technology for great energy savings
     Superior, drop-in replacement for existing Pentair WhisperFlo pumps
    Totally enclosed fan-cooled (TEFC) motor performs with top durability
    User-friendly programming lets you pick the best speed for your pool
    WEF 8.4 THP 2.60
