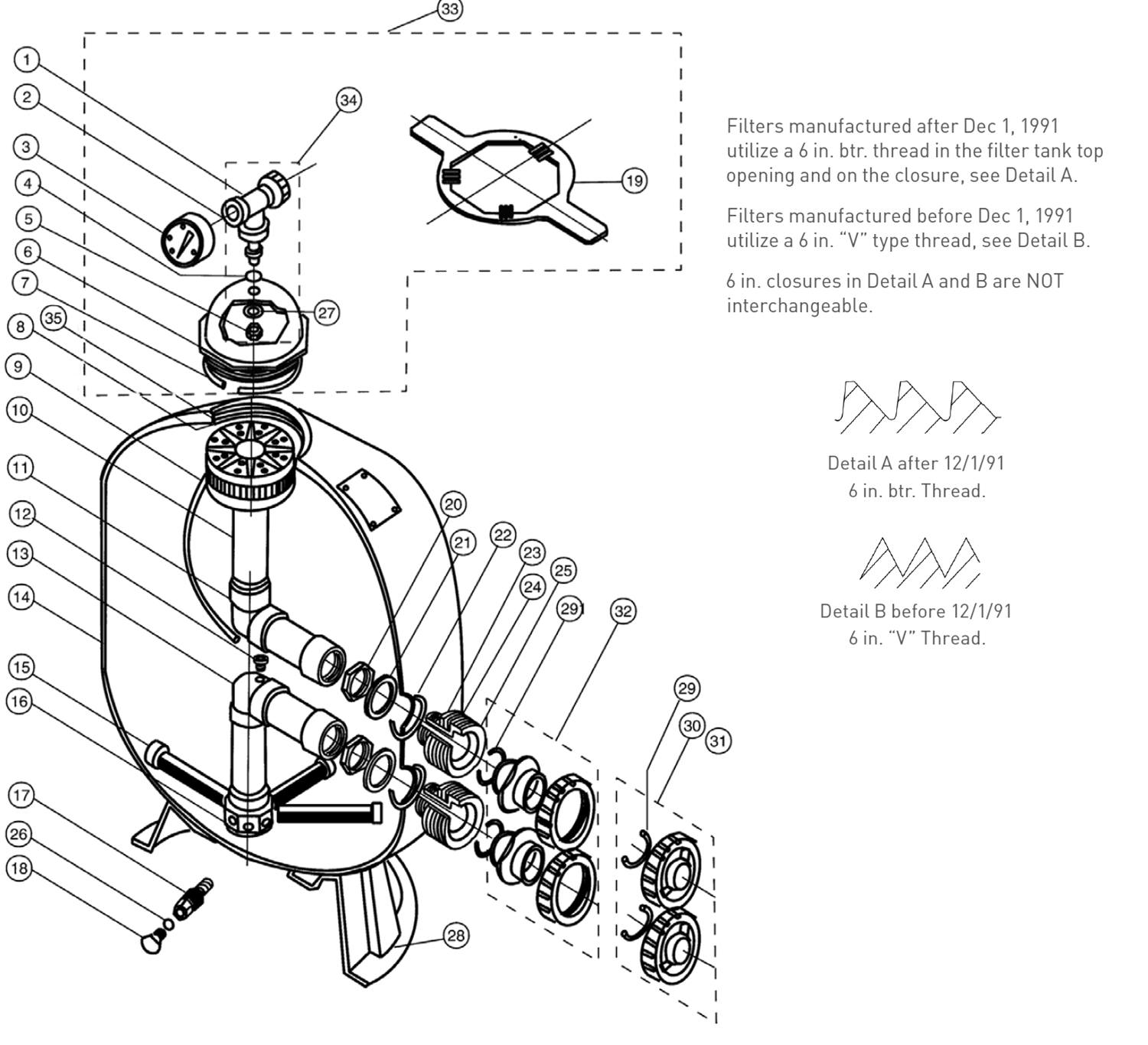

Triton II Sand Filter Parts

Details:
Pentair Pool Products Part Number 154689
Used On Sta-Rite System 3 Modular Media SM Series Filters
Used On Sta-Rite System 3 SD Series DE Filters
Used On Sta-Rite System 3 SMD Series DE Filters
Used On Pentair PacFab Triton II Sand Filters

• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Used On Sta-Rite System 3 SS Series Sand Filters

Details:
Pentair Pool Products Part Number 154700
Used On Pentair PacFab Triton II Sand Filters

• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Details:
Pentair Pool Products Part Number 190059
Used On Pentair Sand Dollar Filters
Used On Pentair PacFab Tagelus Sand Filters
Used On Pentair PacFab Triton II Sand Filters

• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Used On Sta-Rite Cristal-Flo II Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• Used on filters manufactured before 3-97.

Used On Pentair Pac Fab FNS DE Filters
Used On Pentair 263085, 262525 2 Inch 6 Position Top Mount Clamp-On Multiport Valves
Used On Pentair Pacfab Multiport Valves 262504, 262505, 262506
Used On Pentair Star™ Polymeric Filter Systems
Used On Pentair American Meteor Sand Filter Systems after 2009
Used On Pentair American Products Meteor Sand Filter Systems before 2009
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters

Details:
Pentair Pool Products Part Number 154661
Used On Pentair PacFab Triton II Sand Filters

• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Details:
Pentair Pool Products Part Number 154664
3/8in.-16 Ss
Used On Pentair PacFab Triton II Sand Filters

• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Details:
Pentair Pool Products Part Number 152519Z formerly 154570
6 Inch Buttress Thread
Used On Pentair PacFab Triton II Sand Filters

• See Detail A
• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Details:
Pentair Pool Products Part Number 154559
6 in. “V” thread
Used On Pentair PacFab Triton II Sand Filters

• See Detail B
• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Details:
Pentair Pool Products Part Number 154493
.157 in. x 5.75 in. i.d.
Used On Pentair PacFab Tagelus Sand Filters

• TA30 TA30D TA35 TA35D TA40 TA40D TA50 TA50D TA60

Used On Pentair PacFab Triton II Sand Filters

• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Used On Pentair Pacfab Multiport Valves 262504, 262505, 262506
Used On Pentair PacFab Top Mount and Side Mount Multiports

• Flanged Valve Adapter 1-1/2 In.

Details:
Pentair Pool Products Part Number 154578
1/4 Inch
Used On Pentair PacFab Triton II Sand Filters

• All filters manufactured before 11-1-99.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

• Use on filters manufactured before 11-1-99.

Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• Used on filters manufactured before 11-99

Details:
Pentair Pool Products Part Number 150035
3/8 Inch
Used On Pentair PacFab Triton II Sand Filters

• Used on filters manufactured after 11-1-99.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

• Use on filters manufactured after 11-1-99.

Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• Used on filters manufactured after 11-99.

Details:
Pentair Pool Products Part Number 154435
Used On Pentair PacFab Triton II Sand Filters

• TR40 All filters manufactured before 11-1-99.

Details:
Pentair Pool Products Part Number 150039
Used On Pentair PacFab Triton II Sand Filters

• TR40 Used on filters manufactured after 11-1-99.

Details:
Pentair Pool Products Part Number 154436
Used On Pentair PacFab Triton II Sand Filters

• TR50/TR60 All filters manufactured before 11-1-99.

Details:
Pentair Pool Products Part Number 150040
Used On Pentair PacFab Triton II Sand Filters

• TR50/TR60 Used on filters manufactured after 11-1-99.

Details:
Pentair Pool Products Part Number 154437
Used On Pentair PacFab Triton II Sand Filters

• TR100 All filters manufactured before 11-1-99.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

• TR100C - Use on filters manufactured before 11-1-99.

Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• TR100C-3  Used on filters manufactured before 11-99.

Details:
Pentair Pool Products Part Number 150041
Used On Pentair PacFab Triton II Sand Filters

• TR100 Used on filters manufactured after 11-1-99.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

• TR100C - Use on filters manufactured after 11-1-99.

Details:
Pentair Pool Products Part Number 154438
Used On Pentair PacFab Triton II Sand Filters

• TR140 All filters manufactured before 11-1-99.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

• TR140C - Use on filters manufactured before 11-1-99.

Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• TR140C-3 Used on filters manufactured before 11-99.

Details:
Pentair Pool Products Part Number 150042
Used On Pentair PacFab Triton II Sand Filters

• TR140 Used on filters manufactured after 11-1-99.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

• TR140C - Use on filters manufactured after 11-1-99.

Details:
Pentair Pool Products Part Number 154598
Used On Pentair PacFab Triton II Sand Filters

• TR40/TR50

Details:
Pentair Pool Products Part Number 154599
Used On Pentair PacFab Triton II Sand Filters

• TR60

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• TR100C-3  2 Required
• TR140C-3  4 Required

Details:
Pentair Pool Products Part Number 154462
Used On Pentair PacFab Triton II Sand Filters

• TR100

Details:
Pentair Pool Products Part Number 154906
Used On Pentair PacFab Triton II Sand Filters

• TR140

Details:
Pentair Pool Products Part Number 154803
Used On Pentair PacFab Triton II Sand Filters

• TR40

Details:
Pentair Pool Products Part Number 156814
Used On Pentair PacFab Triton II Sand Filters

• TR50

Details:
Pentair Pool Products Part Number 154533
Used On Pentair PacFab Triton II Sand Filters

• TR60

Details:
Pentair Pool Products Part Number 154426
Used On Pentair PacFab Triton II Sand Filters

• TR100

Details:
Pentair Pool Products Part Number 154500
Used On Pentair PacFab Triton II Sand Filters

• TR140

Details:
Pentair Pool Products Part Number 150036
Used On Pentair PacFab Triton II Sand Filters

• Used on filters manufactured after 11-1-99.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

• Use on filters manufactured after 11-1-99.

Details:
Pentair Pool Products Part Number 154801
Used On Pentair PacFab Triton II Sand Filters

• TR40

Details:
Pentair Pool Products Part Number 156816
Used On Pentair PacFab Triton II Sand Filters

• TR50

Details:
Pentair Pool Products Part Number 154805
Used On Pentair PacFab Triton II Sand Filters

• TR60

Details:
Pentair Pool Products Part Number 155284
Used On Pentair PacFab Triton II Sand Filters

• TR60 built after 6-07.

Details:
Pentair Pool Products Part Number 154807
Used On Pentair PacFab Triton II Sand Filters

• TR100

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

• TR100C

Details:
Pentair Pool Products Part Number 154489
Used On Pentair PacFab Triton II Sand Filters

• TR140

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

• TR140C

Details:
Pentair Pool Products Part Number 152290
** 2020 DESIGN CHANGE **
6-11/16 Inches long
Used On Pentair Sand Dollar Filters

• SD40/SD60 - 8 Required

Used On Pentair PacFab Tagelus Sand Filters AFTER 2020

• TA40 TA40D TA50 TA50D TA60 TA60D - 8 Required

Used On Pentair PacFab Triton II Sand Filters

•  TR40/TR50/TR60

Details:
Pentair Pool Products Part Number 150085
1/4 Turn
Used On Pentair Sand Dollar Filters

• SD60, SD70, SD80 - Filters manufactured after 10/04.

Used On Pentair PacFab Tagelus Sand Filters ** AFTER 2020

• TTA50/TA50D/TA60/A60D - 6 Required
• TTA50/TA50D/TA60/ Filters manufactured after June 1, 2007 have new 1/4 turn laterals.

Used On Pentair PacFab Triton II Sand Filters

• TR60 built after 6-07.

Used On Sta-Rite Cristal-Flo II Sand Filters

• 22 in., 24 in., & 26 in. Tanks (6 req.)

Used On Pentair American Meteor Sand Filter Systems after 2009

• Meteor 22 in.

Used On Pentair American Products Meteor Sand Filter Systems before 2009

• Meteor 22 in.
• Used on filters manufactured after 10-2004.

Details:
Pentair Pool Products Part Number 152202
9-1/8 in. long
Used On Pentair PacFab Tagelus Sand Filters

• TA100 TA100D

Used On Pentair PacFab Triton II Sand Filters

• TR100 Used on filters manufactured after 5-85.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

• TR100C - 8 Required

Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• TR100C-3   8 Required

Details:
Pentair Pool Products Part Number 154540
12 Inch
Used On Pentair PacFab Triton II Sand Filters

• TR140 - 8 Required

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

• TR140C - 8 Required

Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• TR140C-3   8 Required

Details:
Pentair Pool Products Part Number 150088
Sold Individually
Used On Pentair Sand Dollar Filters

• ClearPro - 6 Required

Used On Pentair PacFab Tagelus Sand Filters

• ClearPro - 6 Required

Used On Pentair PacFab Triton II Sand Filters

• ClearPro

Details:
Pentair Pool Products Part Number 154763
Used On Pentair PacFab Triton II Sand Filters

• TR40/TR50/TR60

Details:
Pentair Pool Products Part Number 155753
Used On Pentair PacFab Triton II Sand Filters

• ClearPro - 6 Required
• TR60’s built after 6-07.

Details:
Pentair Pool Products Part Number 154453
Used On Pentair PacFab Triton II Sand Filters

• TR100/TR140

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

Details:
Pentair Pool Products Part Number 154698
3/4 in. NPT
Used On Pentair PacFab Tagelus Sand Filters

• TA30D TA35D TA40D TA50D TA60D

Used On Pentair PacFab Triton II Sand Filters

• Used on filters manufactured after 3-83.

Details:
Pentair Pool Products Part Number 357161
1/4" NPT
Used On Pentair Whisperflo® Pumps
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Pinnacle High Flow Pumps
Used On Sta-Rite IntelliproXF Variable Speed Pumps after August 2015
Used On Sta-Rite IntelliproXF Variable Speed Pumps before August 2015
Used On Sta-Rite Intellipro VS+SVRS Pumps
Used On Sta-Rite Max-E-ProXF Pumps
Used On Sta-Rite Supermax VS Pumps
Used On Sta-Rite Supermax Pumps
Used On Sta-Rite Pentair Optiflo Pumps
Used On Pentair EQ Series Commercial Plastic Pumps
Used On Pentair Waterfall Specialty Pumps
Used On Sta-Rite Intellipro VS+SVRS Pumps After June 2016
Used On Pentair PacFab Tagelus Sand Filters
Used On Pentair PacFab Triton II Sand Filters

• Used on filters manufactured after 3-83.

Used On Pentair SuperFlo VS / VST Pumps after 10-2020
Sta-Rite SuperMax VS Pumps after 10-2020
Used On Pentair SuperFlo VS VST Pumps before 11-2020
Sta-Rite SuperMax VS Pumps before 11-2020
Used On Max-E-Pro XF Pumps
Used On Sta-Rite SuperMax DOE Pumps
Used On Sta-Rite Max-E-ProXF VS Pumps

Details:
Pentair Pool Products Item Number: U178-920P
with O-Ring

Used On Sta-Rite Max-E-Pro Series Pumps
Used On Sta-Rite Max-E-Glas | Dura-Glas FULL Rated Pumps
Used On Sta-Rite Max-E-Glas | Dura-Glas UP-Rated Pumps
Used On Sta-Rite Max-E-Glas II | Dura-Glas II UP-Rated Pumps
Used On Sta-Rite Max-E-Glas II | Dura-Glas II FULL Rated Pumps
Used On Sta-Rite Dyna-Pro | Dyna-Pro E Pumps
Used On Sta-Rite Dynamo Pumps
Used On Sta-Rite ABG Series Pumps
Used On Sta-Rite JWP Series Pumps
Used On Sta-Rite Dyna-Wave Series Pumps
Used On Sta-Rite Dyna-Jet TPE Series Pumps
Used On Sta-Rite Sand Filters
Used On Pentair ETi 400 Heaters
Used On Pentair Mastertemp Heaters
Used On Sta-Rite Max-E-Therm Heaters
Used On Sta-Rite Side Mount 1-1/2 and 2 Inch Multiport Valves
Used On Pentair ETi 400 High Efficiency Heaters
Used On Pentair ETi 250 Heaters
Used On Sta-Rite Max-E-Pro Series DOE Pumps

Details:
Pentair Pool Products Part Number 154512
6.5 Inch Across
Used On Pentair PacFab Tagelus Sand Filters

• TA30D TA40D TA50D TA60D

Used On Pentair PacFab Triton II Sand Filters

• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Used On Pentair PacFab Top Mount and Side Mount Multiports

• Flanged Valve 1-1/2 Inch

Details:
Pentair Pool Products Part Number 154510
6 Inch - Aluminum
Used On Pentair PacFab Triton II Sand Filters

• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Details:
Pentair Pool Products Part Number 154412
2 Inch Internal
Used On Pentair PacFab Triton II Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair PacFab Wall Fittings
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 154416
2 Inch Internal
Used On Pentair PacFab Triton II Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

Details:
Pentair Pool Products Part Number 154492
3/16in. x 2 5/8in. Id
Used On Pentair PacFab Triton II Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 154538
2 Inch
Used On Pentair PacFab Triton II Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

Details:
Pentair Pool Parts Part Number: 8023304
Used On Pentair Intelliflo 3 Variable Speed and Flow Pumps
Used On Sta-Rite Intellipro 3 Variable Speed and Flow Pumps

Details:
Pentair Pool Products Part Number 154418
3/8" Stainless Steel
Used On Pentair PacFab Triton II Sand Filters
For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Details:
Pentair Pool Products Part Number 154926
16 Inch Diameter
Used On Pentair Sand Dollar Filters

• SD35

Used On Pentair PacFab Tagelus Sand Filters

• TA35 TA35D TA40 TA40D TA50 TA50D TA60 TA60D

Used On Pentair PacFab Triton II Sand Filters

• TR40/TR50 - Used on filters manufactured after 2-89.
• Replacement of tank foot requires the use of foot mounting tape.

Used On Sta-Rite Cristal-Flo II Sand Filters

• 16 in. Tank

Details:
Pentair Pool Products Part Number 154520
19 Inch Diameter
Used On Pentair Sand Dollar Filters

• SD40, SD60, SD70, & SD80 - Used on filters manufactured before 2/02.

Used On Pentair PacFab Triton II Sand Filters

• TR60 - Used on filters manufactured after 2-89.
• Replacement of tank foot requires the use of foot mounting tape.

Used On Sta-Rite Cristal-Flo II Sand Filters

• 19 in., 22 in., 24 in., & 26 in. Tanks

Details:
Pentair Pool Products Part Number 154596
24 Inch Diameter
Used On Pentair PacFab Tagelus Sand Filters

• TA100
• Replacement of tank ft. requires the use of mounting tape. See part number listed.

Used On Pentair PacFab Triton II Sand Filters

• TR100/TR140 - Used on filters manufactured after 2-89.
• Replacement of tank foot requires the use of foot mounting tape.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

Details:
Pentair Pool Products Part Number 271092
2 Inch
Used On Pentair PacFab Triton II Sand Filters

• For installations w/out valve, pair.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

Details:
Pentair Pool Products Part Number 271094
1.5 Inch
Used On Pentair PacFab Triton II Sand Filters

• For installations w/out valve, pair.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

Details:
Pentair Pool Products Part Number 271096
for 1-1/2" pipe and 2" fittings
Used On Pentair Clean & Clear Plus Filters
Used On Pentair FNS Plus DE Filters
Used On Pentair PacFab Triton II Sand Filters

• For installations w/out valve, pair.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters

Details:
Pentair Pool Products Part Number 274426Z
FullFloXF Union Assembly
2-1/2 In. x 2 In. I.D.
Used On Pentair Clean & Clear Plus Filters
Used On Pentair Quad DE Filters
Used On Pentair PacFab Triton II Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair FullfloXF Backwash Valves

Details:
Pentair Pool Products Part Number 155738
8.5 Inch
Used On Pentair PacFab Triton II Sand Filters

• HD

Details:
Pentair Pool Products Part Number 154641
6 Inch Buttress Thread
Used On Pentair PacFab Triton II Sand Filters

• See Detail A
• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Details:
Pentair Pool Products Part Number 154697
6 Inch "V" Thread
Used On Pentair PacFab Triton II Sand Filters

• See Detail B

Details:
Pentair Pool Products Part Number 154856
8.5 Inch Buttress Thread
Used On Pentair PacFab Triton II Sand Filters

• Used on all TR100 & 140 filters manufactured after 10-1-01.
• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• Used on filters manufactured after 4-15.

Details:
Pentair Pool Products Part Number 154687
Used On Pentair PacFab Triton II Sand Filters

• Fitting package includes items 1,2,4,5 and 27.
• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Details:
Pentair Pool Products Part Number 154611
3-3/4 Inch
Used On Pentair PacFab Triton II Sand Filters

• TR40

Details:
Pentair Pool Products Part Number 154612
4-1/2 Inch
Used On Pentair PacFab Triton II Sand Filters

• TR50/TR60

Details:
Pentair Pool Products Part Number 154613
5-1/2 Inch
Used On Pentair PacFab Triton II Sand Filters

• TR100

Details:
Pentair Pool Products Part Number 154614
5 Inch
Used On Pentair PacFab Triton II Sand Filters

• TR140

Details:
Pentair Pool Products Part Number 154402
Used On Pentair PacFab Tagelus Sand Filters

• TA30 TA30D TA35 TA35D TA40 TA40D TA50 TA50D TA60 TA60D

Used On Pentair PacFab Triton II Sand Filters

• TR40/TR50/TR60 - 3 Required

Details:
Pentair Pool Products Part Number 154407
Used On Pentair PacFab Tagelus Sand Filters

• TA100 TA100D

Used On Pentair PacFab Triton II Sand Filters

• TR100/TR140 - 3 Required

Details:
Pentair Pool Products Part Number 151602
2 Inch
Used On Pentair PacFab Triton II Sand Filters

Details:
Pentair Pool Products Part Number 154714Z
2 Inch
Used On Pentair PacFab Triton II Sand Filters

• Includes items 20-25

Details:
Pentair Pool Products Part Number 151092
8.5 Inch
Used On Pentair PacFab Triton II Sand Filters

Details:
Pentair Pool Products Part Number 152220Z
2 Inch
Left-hand thread
Used On Pentair PacFab Tagelus Sand Filters

• TA100

Used On Pentair PacFab Triton II Sand Filters

• TR100 and TR140

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

Details:
Pentair Pool Products Part Number 154871
1-1/2 in. thread
Used On Pentair PacFab Tagelus Sand Filters

• TA100 TA100D

Used On Pentair PacFab Triton II Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

Details:
Pentair Pool Products Part Number 274494
3/16 in. x 2-5/8 in. i.d.
Used On Pentair PacFab Tagelus Sand Filters

• TA100

Used On Pentair PacFab Triton II Sand Filters

• TR100 TR140

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters
Used On Pentair Minimax NT Std Heater with 6800 Controller (Dual Knobs)
Used On Pentair Minimax NT Std Heater with DDTC Controller (Keypad)
Used On Pentair Minimax NT Low Nox Heater with 6800 Controller (Dual Knobs)
Used On Pentair Minimax NT Low Nox Heater with DDTC Controller (Keypad)
Used On Pentair Minimax NT TSI Heater with 6800 Controller (Dual Knobs)
Used On Pentair Minimax NT TSI Heater with DDTC Controller (Keypad)
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair PacFab 2 In. Hiflow Multiport Valves 261049, 261050, 261142
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2 Required

Used On Pentair FullfloXF Backwash Valves
Used On Pentair Fullflow® Valves
Used On Pentair American Push Pull Valves

• For Bulkhead 263064

Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters
