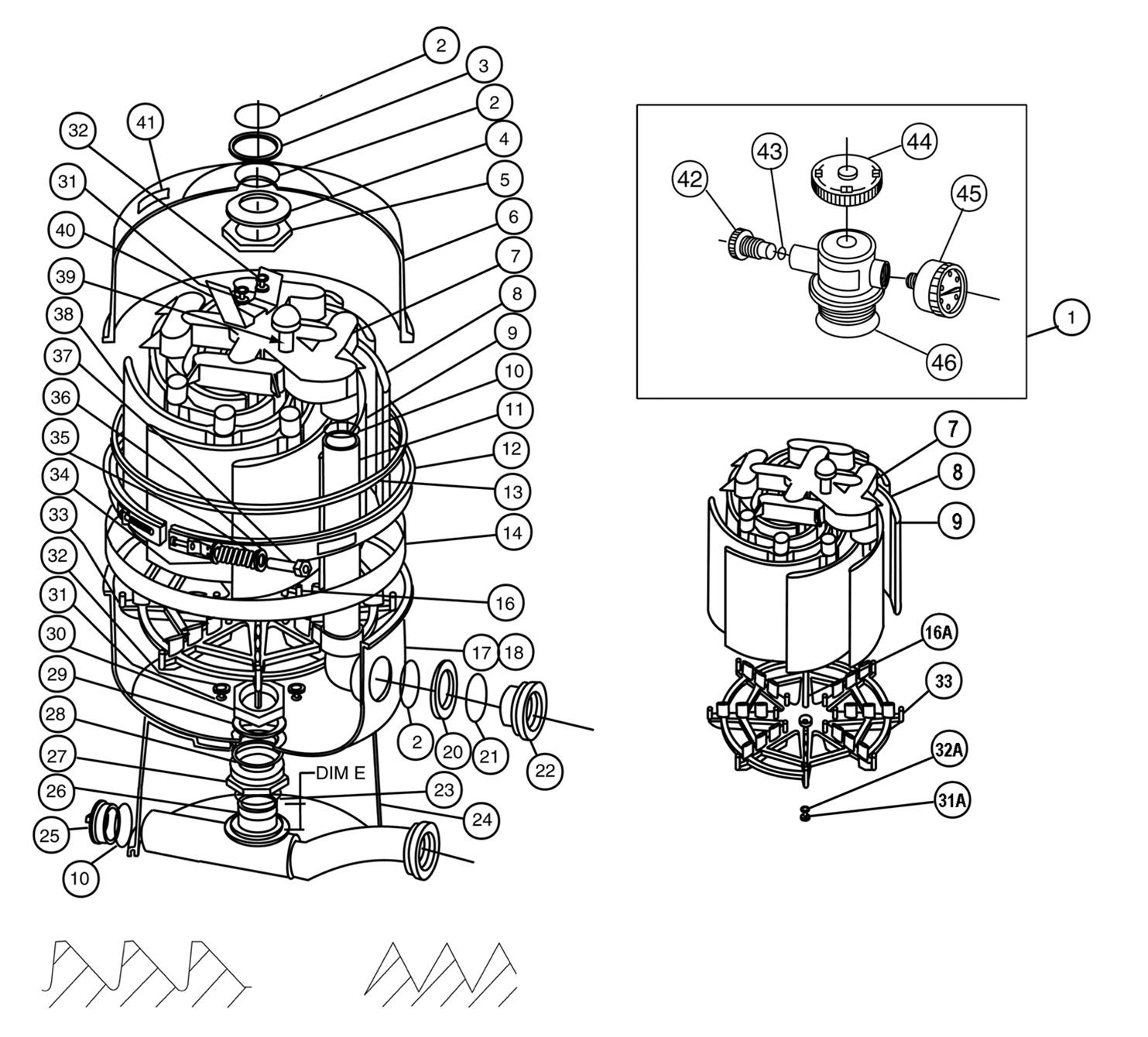

FNS DE Filter Parts

Details:
Pentair Pool Products Part Number 273550
Used On Pentair Pac Fab FNS DE Filters
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 273502
Used On Pentair Pac Fab FNS DE Filters

• 3 Required

Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters

Details:
Pentair Pool Products Part Number 273505
Used On Pentair Pac Fab FNS DE Filters
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 192173
Includes Extension & Air Relief
Used On Pentair Pac Fab FNS DE Filters

Details:
Dimensions:
Length 12 Inches
Width 11 Inches
Style Full (Wide)
Compatible with:
Unicel FG-1002
Astral Clarity DE 18044
Hayward Micro-Clear DEX2400DA
Pentair / American Products 5000 Series, Titan CM, Titan RPM, Titan Stainless Steel 59001100
Pentair / Pac Fab NS24 (Nautilus), NSP-24 (Nautilus Plus), FNS Plus, FNS 24(Nautilus FNS Polymeric) 19-2186
Sta-Rite WC208-74
Used On Pentair FNS Plus DE Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair Titan CM DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Dimensions:
Length 18 Inches
Width 11 Inches
Style Full (Wide)
Compatible with:
Unicel FG-1003
Astral Clarity DE 18045
Hayward Micro-Clear DEX3600DA
Jacuzzi Earthworks 42297003
Pentair / American Products 5000 Series, Titan CM, Titan RPM, Titan Stainless Steel 59001800
Pentair / Pac Fab NS36 (Nautilus), NSP-36 (Nautilus Plus), FNS Plus, FNS 36 (Nautilus FNS Polymeric) 19-2187
Sta-Rite WC208-75
Waterway Plastics Crystal Water 818-3950
Used On Pentair FNS Plus DE Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair Titan CM DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Dimensions:
Length 24 Inches
Width 11 Inches
Style Full (Wide)
Compatible with:
Unicel FG-1004
Astral Clarity DE 18046
Hayward Micro-Clear DEX4800DA
Jacuzzi Earthworks 42297005
Jandy DEV48, DEL48 A0560100, R0555000
Pentair / American Products 5000 Series, Titan CM, Titan RPM, Titan Stainless Steel 59002400
Pentair / Pac Fab NS48 (Nautilus), NSP-48(Nautilus Plus), FNS Plus, FNS 48 (Nautilus FNS Polymeric) 19-2188
Sta-Rite WC208-76
Waterway Plastics Crystal Water 818-3910
Used On Pentair Titan CM DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Dimensions:
Length 30 Inches
Width 11 Inches
Style Full (Wide)
Compatible with:
Unicel FG-1005
Astral Clarity DE 18047
Hayward Micro-Clear DEX6000DA
Jandy DEV60, DEL60 R0359100, S0109200
Jacuzzi Earthworks 42297007
Pentair / American Products 5000 Series, Titan CM, Titan RPM, Titan Stainless Steel 59003000
Pentair / Pac Fab NS60 (Nautilus), NSP-60 (Nautilus Plus), FNS Plus, FNS 60 (Nautilus FNS Polymeric) 19-2189
Sta-Rite WC208-77
Waterway Plastics Crystal Water 818-3930
Used On Pentair Titan CM DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Dimensions:
Length 12 Inches
Width 9 3⁄4 Inches
Style Partial (Narrow)
Compatible with:
Unicel PG-1902
Astral Clarity DE 18044
Hayward Micro-Clear DEX2400DS
Pentair / American Products 5000 Series, Titan CM, Titan RPM, Titan Stainless Steel 59001000
Pentair / Pac Fab NS24 (Nautilus), NSP-24 Nautilus Plus), FNS Plus, FNS 24 Nautilus FNS Polymeric)
Used On Pentair FNS Plus DE Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair Titan CM DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Dimensions:
Length 18 Inches
Width 9 3⁄4 Inches
Style Partial (Narrow)
Compatible with:
Unicel PG-1903
Astral Clarity DE 18045
Hayward Micro-Clear DEX3600DS
Pentair / American Products 5000 Series, Titan CM, Titan RPM, Titan Stainless Steel 59001700
Pentair / Pac Fab NS36 (Nautilus), NSP-36(Nautilus Plus), FNS Plus, FNS 36 (Nautilus FNS Polymeric) 19-2330
Waterway Plastics Crystal Water 818-3940
Used On Pentair FNS Plus DE Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair Titan CM DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Dimensions:
Length 24 Inches
Width 9 3⁄4 Inches
Style Partial (Narrow)
Compatible with:
Unicel PG-1904
Astral Clarity DE 18046
Hayward Micro-Clear DEX4800DS
Jandy DEV48, DEL48 A0560200, R0554900
Pentair / American Products 5000 Series, Titan CM, Titan RPM, Titan Stainless Steel 59002300
Pentair / Pac Fab NS48 (Nautilus), NSP-48 (Nautilus Plus), FNS Plus, FNS 48 (Nautilus FNS Polymeric) 19-2332
Waterway Plastics Crystal Water 818-3900
Used On Pentair Titan CM DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Dimensions:
Length 30 Inches
Width 9 3⁄4 Inches
Style Partial (Narrow)
Compatible with:
Unicel PG-1905
Astral Clarity DE 18047
Hayward Micro-Clear DEX6000DS
Jandy DEV60, DEL60 S0109300, R0359200
Pentair / American Products 5000 Series, Titan CM, Titan RPM, Titan Stainless Steel 59002900
Pentair / Pac Fab NS60 (Nautilus), NSP-60 (Nautilus Plus), FNS Plus, FNS 60 (Nautilus FNS Polymeric) 19-2334
Waterway Plastics Crystal Water 818-3920
Used On Pentair Titan CM DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 192323
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair HydroPumps
Used On Pentair PacFab Bermuda Pool Skimmers
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters
Used On Pentair FullFloXF C-Series Cartridge Filters

Details:
Pentair Pool Products Part Number 190003
Used On Pentair Clean & Clear Plus Filters
Used On Pentair FNS Plus DE Filters
Used On Pentair Quad DE Filters
Used On Pentair Pac Fab FNS DE Filters

• Filters manufactured before March 1, 1993 contain a different clamp band assembly, item 12 . The correct P/N for these units is 181012 Filters manufactured before Sept. 1, 1992 contain a different non-spring design. Clamp components such as nuts, washers or bolts are no longer available for these non-spring design clamps. Do not attempt to interchange components between spring design and non-spring design clamps.

Used On Pentair FullFloXF Q-Series Cartridge Filters
Used On Pentair FullFloXF C-Series Cartridge Filters
Used On Pentair FullFloXF FV-Series DE Filters
Used On Pentair FullFloXF F-Series DE Filters

Details:
Pentair Pool Products Part Number 195008
Used On Pentair Pac Fab FNS DE Filters

Details:
Pentair Pool Products Part Number 195337
15/16 In. Tall
Used On Pentair Pac Fab FNS DE Filters

• Filters manufactured before March 1, 1993 contain a different retainer, item 14 which is 5/8 in. tall.

Details:
Pentair Pool Products Part Number 192184
5/16in. x 27-1/2in. SS
Used On Pentair Pac Fab FNS DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 192185
5/16 In. x 33-1/2 In SS
Used On Pentair Pac Fab FNS DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 192141
5/16 In. x 19 In. SS
Used On Pentair Pac Fab FNS DE Filters

• FNS36

Details:
Pentair Pool Products Part Number 192140
5/16 In. x 13 In. Long
Used On Pentair Pac Fab FNS DE Filters

• FNS24

Details:
Pentair Pool Products Part Number 192320
Used On Pentair Clean & Clear Plus Filters

• Used on filters manufactured after 11/98.

Used On Pentair FNS Plus DE Filters

• Used on filters manufactured before 10/04.

Used On Pentair Pac Fab FNS DE Filters
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 86006900
Used On Pentair Clean & Clear Plus Filters

• Used on filters manufactured before 11/98.
• Used on filters manufactured after 10/04.

Used On Pentair FNS Plus DE Filters
Used On Pentair Quad DE Filters
Used On Pentair Pac Fab FNS DE Filters

Details:
Pentair Pool Products Part Number 190141
2 Inch with O-Ring
Used On Pentair FNS Plus DE Filters

• Used on filters manufactured after 10/04.

Used On Pentair Pac Fab FNS DE Filters

• For Filter built after 10/2004. Order # 11 for filters built before 10/2004.

Details:
Pentair Pool Products Part Number 274494
3/16 in. x 2-5/8 in. i.d.
Used On Pentair PacFab Tagelus Sand Filters

• TA100

Used On Pentair PacFab Triton II Sand Filters

• TR100 TR140

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters
Used On Pentair Minimax NT Std Heater with 6800 Controller (Dual Knobs)
Used On Pentair Minimax NT Std Heater with DDTC Controller (Keypad)
Used On Pentair Minimax NT Low Nox Heater with 6800 Controller (Dual Knobs)
Used On Pentair Minimax NT Low Nox Heater with DDTC Controller (Keypad)
Used On Pentair Minimax NT TSI Heater with 6800 Controller (Dual Knobs)
Used On Pentair Minimax NT TSI Heater with DDTC Controller (Keypad)
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair PacFab 2 In. Hiflow Multiport Valves 261049, 261050, 261142
Used On Pentair PacFab Top Mount and Side Mount Multiports

• 2 Required

Used On Pentair FullfloXF Backwash Valves
Used On Pentair Fullflow® Valves
Used On Pentair American Push Pull Valves

• For Bulkhead 263064

Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters

Details:
Pentair Pool Products Part Number 195153
Used On Pentair Pac Fab FNS DE Filters

Details:
Pentair Pool Products Part Number 195829
2 Inch Threaded
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair PacFab Bermuda Pool Skimmers
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 195308
1-5/8 In.
Used On Pentair Pac Fab FNS DE Filters

• Filters manufactured before Oct. 1, 1992 utilize a different lower piping assembly P/N 195107 Lower piping P/N 195107 fits 6 in. adapters P/N 195219 and P/N 195225 only. Dimension E for P/N 195107 is 2 1/2 in.

Details:
Pentair Pool Products Part Number 195221
6 Inch Buttress Thread
Used On Pentair Pac Fab FNS DE Filters

• Use with 195306, 195307, 195308, 195309

Details:
Pentair Pool Products Part Number 152517 was 154494

Used On Pentair PacFab Tagelus Sand Filters

• TA30D TA35D TA40D TA50D TA60D

Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• Used on filters manufactured before 3-97.

Used On Pentair Pac Fab FNS DE Filters

Details:
Pentair Pool Products Part Number 195004
2 3/8in. x 3in.
Used On Pentair Pac Fab FNS DE Filters

Details:
Pentair Pool Products Part Number 154412
2 Inch Internal
Used On Pentair PacFab Triton II Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair PacFab Wall Fittings
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 192013
5/16in.-18 SS
Used On Pentair Pac Fab FNS DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Item Number 174955Z
5/16" SS
Used On Pentair Pac Fab FNS DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 192194
Used On Pentair Pac Fab FNS DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 195610
Used On Pentair Clean & Clear Plus Filters
Used On Pentair FNS Plus DE Filters
Used On Pentair Quad DE Filters
Used On Pentair Pac Fab FNS DE Filters

• Filters manufactured before March 1, 1993 contain a different clamp band assembly, item 12 . The correct P/N for these units is 181012 Filters manufactured before Sept. 1, 1992 contain a different non-spring design. Clamp components such as nuts, washers or bolts are no longer available for these non-spring design clamps. Do not attempt to interchange components between spring design and non-spring design clamps.

Used On Pentair FullFloXF C-Series Cartridge Filters

Details:
Pentair Pool Products Part Number 195612
Used On Pentair Quad DE Filters
Used On Pentair Pac Fab FNS DE Filters

• Filters manufactured before March 1, 1993 contain a different clamp band assembly, item 12 . The correct P/N for these units is 181012 Filters manufactured before Sept. 1, 1992 contain a different non-spring design. Clamp components such as nuts, washers or bolts are no longer available for these non-spring design clamps. Do not attempt to interchange components between spring design and non-spring design clamps.

Used On Pentair FullFloXF C-Series Cartridge Filters

Details:
Pentair Pool Products Part Number 195611
Used On Pentair Quad DE Filters
Used On Pentair Pac Fab FNS DE Filters

• Filters manufactured before March 1, 1993 contain a different clamp band assembly, item 12 . The correct P/N for these units is 181012 Filters manufactured before Sept. 1, 1992 contain a different non-spring design. Clamp components such as nuts, washers or bolts are no longer available for these non-spring design clamps. Do not attempt to interchange components between spring design and non-spring design clamps.

Used On Pentair FullFloXF C-Series Cartridge Filters

Details:
Pentair Pool Products Part Number 194997
Used On Pentair Quad DE Filters
Used On Pentair Pac Fab FNS DE Filters

• Filters manufactured before March 1, 1993 contain a different clamp band assembly, item 12 . The correct P/N for these units is 181012 Filters manufactured before Sept. 1, 1992 contain a different non-spring design. Clamp components such as nuts, washers or bolts are no longer available for these non-spring design clamps. Do not attempt to interchange components between spring design and non-spring design clamps.

Used On Pentair FullFloXF C-Series Cartridge Filters

Details:
Pentair Pool Products Part Number 195182
Used On Pentair Pac Fab FNS DE Filters

• FNS24
• Complete grid assembly consists of items 7, 8, 9, 16, 31, 32, 33 and 39 in correct quantities as shown.

Details:
Pentair Pool Products Part Number 195183
Used On Pentair Pac Fab FNS DE Filters
Grids are 18" Tall

• FNS36
• Complete grid assembly consists of items 7, 8, 9, 16, 31, 32, 33 and 39 in correct quantities as shown.

Details:
Pentair Pool Products Part Number 195086
Used On Pentair Pac Fab FNS DE Filters

• FNS48
• Complete grid assembly consists of items 7, 8, 9, 16, 31, 32, 33 and 39 in correct quantities as shown.

Details:
Pentair Pool Products Part Number 195070
Used On Pentair Pac Fab FNS DE Filters

• FNS60
• Complete grid assembly consists of items 7, 8, 9, 16, 31, 32, 33 and 39 in correct quantities as shown.

Details:
Pentair Pool Products Part Number 172855
Used On Pentair Pac Fab FNS DE Filters
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 273512
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair Pacfab Multiport Valves 262504, 262505, 262506

• Clamp Style Valves Manufactured Before March 1, 1993 Contain A Different Air Bleeder With O-Ring P/N 272515. This Part Is Not Interchangeable With P/N 273512. Threaded Valves Manufactured Before March 1, 1993 Do Not Contain An Air Bleeder With O-Ring.

Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 273513
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• Used on filters manufactured before 3-97.

Used On Pentair Pac Fab FNS DE Filters
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 190059
Used On Pentair Sand Dollar Filters
Used On Pentair PacFab Tagelus Sand Filters
Used On Pentair PacFab Triton II Sand Filters

• For individual parts for closure kit for TR100 and TR140 see replacement parts pages.

Used On Sta-Rite Cristal-Flo II Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• Used on filters manufactured before 3-97.

Used On Pentair Pac Fab FNS DE Filters
Used On Pentair 263085, 262525 2 Inch 6 Position Top Mount Clamp-On Multiport Valves
Used On Pentair Pacfab Multiport Valves 262504, 262505, 262506
Used On Pentair Star™ Polymeric Filter Systems
Used On Pentair American Meteor Sand Filter Systems after 2009
Used On Pentair American Products Meteor Sand Filter Systems before 2009
Used On Pac Fab Sea Horse Stainless Steel Cartridge Filters

Details:
Pentair Pool Products Part Number 154492
3/16in. x 2 5/8in. Id
Used On Pentair PacFab Triton II Sand Filters
Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Nautilus Plus NSP Stainless Steel DE Filters

Details:
Pentair Pool Products Part Number 072173
5/16 in. SS flat
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Purex SM | SMBW 4000 Series DE Filters
Used On Pentair Pac Fab FNS DE Filters
Used On Pentair Star™ Polymeric Filter Systems
Used On Nautilus Plus NSP Stainless Steel DE Filters
