Drain Covers AquaStar

Details:

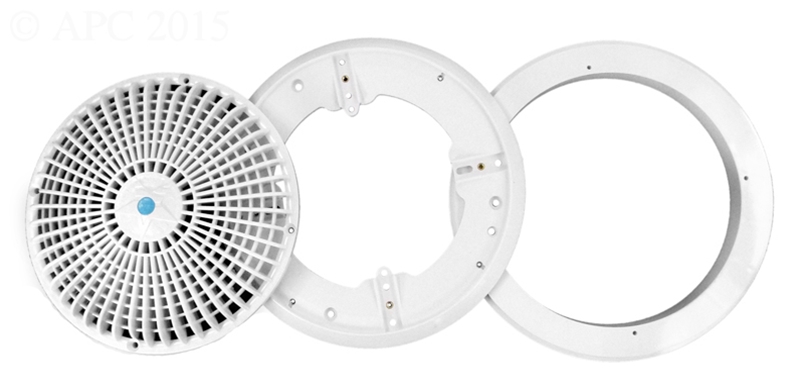

Aquastar Pool Products Item Number 6HPHA101
Retrofits to Sta-Rite/Pentair #8011 and AquaStar #4RNDxxx equalizer

FEATURES
For single or multiple drain use in gunite, steel, fiberglass and tile pools and spas (see installation instructions)
Single – sumpless
Floor/wall (2" pipe): 224 GPM at 6.3 fps

Floor (1½" pipe): 177 GPM at 5.9 fps
Wall (1½" pipe): 122 GPM at 3.4 fps

Floor/wall: 53.3 GPM at 1.5 fps
Floor/wall: 35.5 GPM at 1.0 fps

10.4 square inch opening

Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

All components meet or exceed ANSI/ APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number 8MF101

FEATURES
Includes Mud Frame

For single or multiple drain use
3" sump depth (see installation instructions)

Single –
Floor: 166 GPM at 3.2 fps
Wall: 113 GPM at 2.2 fps

Floor/wall: 77.8 GPM at 1.5 fps
Floor/wall: 51.9 GPM at 1.0 fps

16.6 square inch opening

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

Meets or exceeds ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number R8MF101

FEATURES
Includes Screw and Bushing Kit

For single or multiple drain use in existing frames and sumps

3" sump depth (see installation instructions)

Single –
Floor: 146 GPM at 2.9 fps
Wall: 130 GPM at 2.6 fps

Floor/wall: 75.3 GPM at 1.5 fps
Floor/wall: 50.2 GPM at 1.0 fps

16.1 square inch opening

Three sets of different stainless steel screws

Manufactured from superior UV-resistant engineered polymers

Easily and safely retrofits most brands’ existing 8" frames and sumps that the 8MFxxx does not fit

Meets or exceeds ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number 9MF101

FEATURES
Includes Mud Frame

For single or multiple drain use
3" sump depth (see installation instructions)

Single –
Floor: 258 GPM at 2.3 fps
Wall: 274 GPM at 2.4 fps

Floor/wall: 172 GPM at 1.5 fps
Floor/wall: 114.7 GPM at 1.0 fps

36.8 square inch opening

Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater

Easily and safely retrofits to 9" square ¾" deep frames

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

All components (cover, frame, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number WAV9WR101

Fits: AquaStar (all standard 9" square), Pentair with ¾" deep existing frames and four screw hole pattern

FEATURES
Includes Vented Riser Ring and Mud Frame

For single or multiple drain use
3" minimum sump depth (see installation instructions)

Single –
Floor/wall: 224 GPM at 1.5 fps
Floor/wall: 150.9 GPM at 1.0 fps

48.4 square inch opening

Easily and safely retrofits most brands’ existing 9" square ¾" deep frames*

Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number WAV9WR105

Fits: AquaStar (all standard 9" square), Pentair with ¾" deep existing frames and four screw hole pattern

FEATURES
Includes Vented Riser Ring and Mud Frame

For single or multiple drain use
3" minimum sump depth (see installation instructions)

Single –
Floor/wall: 224 GPM at 1.5 fps
Floor/wall: 150.9 GPM at 1.0 fps

48.4 square inch opening

Easily and safely retrofits most brands’ existing 9" square ¾" deep frames*

Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number R9MF101

Fits: AquaStar “R” 9" models, Hayward, Waterway, American / Pentair, PacFab with 1" deep existing frames and four screw hole pattern

FEATURES
With Screw and Bushing Kit

For single or multiple drain use
3" sump depth (see installation instructions)

Single –
Floor: 258 GPM at 2.3 fps
Wall: 274 GPM at 2.5 fps

Floor/wall: 167.4 GPM at 1.5 fps
Floor/wall: 111.6 GPM at 1.0 fps

35.8 square inch opening

Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

Easily and safely retrofits to most brands’ 1" deep existing frames

All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number 10MF101

FEATURES
Includes Mud Frame

For single or multiple drain use
3" sump depth (see installation instructions)

Single –
Floor: 158 GPM at 1.6 fps
Wall: 162 GPM at 1.7 fps

Floor/wall: 146.3 GPM at 1.5 fps
Floor/wall: 97.6 GPM at 1.0 fps

31.3 square inch opening

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

Meets or exceeds ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number A10RCFR101

Retrofits over all sumps/frames up to 8" using included plastic concrete anchors

FEATURES
VGB Compliant

For single or multiple drain use (see installation instructions)

Single – sumpless:
Floor/wall: 170 GPM at 1.7 fps

Floor/wall: 147.3 GPM at 1.5 fps
Floor/wall: 98.2 GPM at 1.0 fps

31.5 square inch opening

For retrofit or new construction!

Available with universal adapter frame to retrofit all existing frames/sumps up to 8" round

Trademarked VGB compliance button easily identifies VGB 2008 compliance from pool/ spa deck

Manufactured from superior UV-resistant engineered polymer

All components (cover, adapter plate, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure

#316 stainless steel screws

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number 10AVR101

FEATURES
VGB Compliant

Includes Solid Riser Ring and Mud Frame

For single or multiple drain use
3" minimum sump depth (see installation instructions)

Single
Floor: 166 GPM at 4.8 fps
Wall: 96 GPM at 2.8 fps

Floor/wall: 53 GPM at 1.5 fps
Floor/wall: 34.9 GPM at 1.0 fps

11.2 square inch opening

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

Meets or exceeds ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number R12MF101

Fits: AquaStar “R” 12" models, Hayward, Waterway, American / Pentair, PacFab with 1" deep existing frames and four screw hole pattern

FEATURES
VGB Compliant

For single or multiple drain use (see installation instructions)

Single – 3" sump depth
Floor: 274 GPM at 1.3 fps
Wall: 278 GPM at 1.3 fps

Floor/wall: 323.1 GPM at 1.5 fps
Floor/wall: 215.4 GPM at 1.0 fps

When 1.0 or 1.5 fps installations are not required, always use the lower tested flow rate

69.1 square inch opening

Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

Easily and safely retrofits to most brands’ 1" deep existing frames

All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number 12MF101

Fits: AquaStar (all standard 12" square), Pentair with ¾" deep existing frames and four screw hole pattern

FEATURES
Includes Mud Frame

For single or multiple drain use
3" sump depth (see installation instructions)

Single
Floor: 274 GPM at 1.2 fps
Wall: 278 GPM at 1.3 fps

Floor/wall: 332.9 GPM at 1.5 fps
Floor/wall: 221.9 GPM at 1.0 fps

When 1.0 or 1.5 fps installations are not required, always use the lower tested flow rate

71.2 square inch opening

Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater

Easily and safely retrofits to 12" square ¾" deep frames

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

All components (cover, frame, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number WAV12WR101

*Fits: AquaStar (all standard 12" square), Pentair with ¾" deep existing frames and four screw hole pattern

FEATURES
VGB Compliant

Includes Vented Riser Ring and Mud Frame

For single or multiple drain use
3" minimum sump depth (see installation instructions)

Single –
Floor/wall: 361 GPM at 1.3 fps

Floor/wall: 424.5 GPM at 1.5 fps
Floor/wall: 283 GPM at 1.0 fps

When 1.0 or 1.5 fps installations are not required, always use the lower tested flow rate

90.8 square inch opening

Easily and safely retrofits most brands’ existing 12" square ¾" deep frames*

Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure

Replace every five years from the date of installation

Details:
Aquastar Pool Products Item Number WAV18WR101

Includes Four 9" Square Wave Anti-Entrapment Suction Outlet Covers And Vented Riser Rings Solid Riser Ring And Mud Frame

Grates fit: AquaStar (standard 18" square frames); Pentair with ¾" deep existing window grid frame and 4x4 screw hole pattern

FEATURES

For single or multiple drain use
6" minimum sump depth (see installation instructions)

Single –
Floor/wall: 628 GPM at 1.1 fps

Floor/wall: 826.6 GPM at 1.5 fps
Floor/wall: 551.1 GPM at 1.0 fps

When 1.0 or 1.5 fps installations are not required, always use the lower tested flow rate

176.8 square inch opening

Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater

#316 stainless steel screws

Manufactured from superior UV-resistant engineered polymers

Easily and safely retrofits to 18" square ¾" deep frames

All components (covers, frame, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure

Replace every five years from the date of installation
