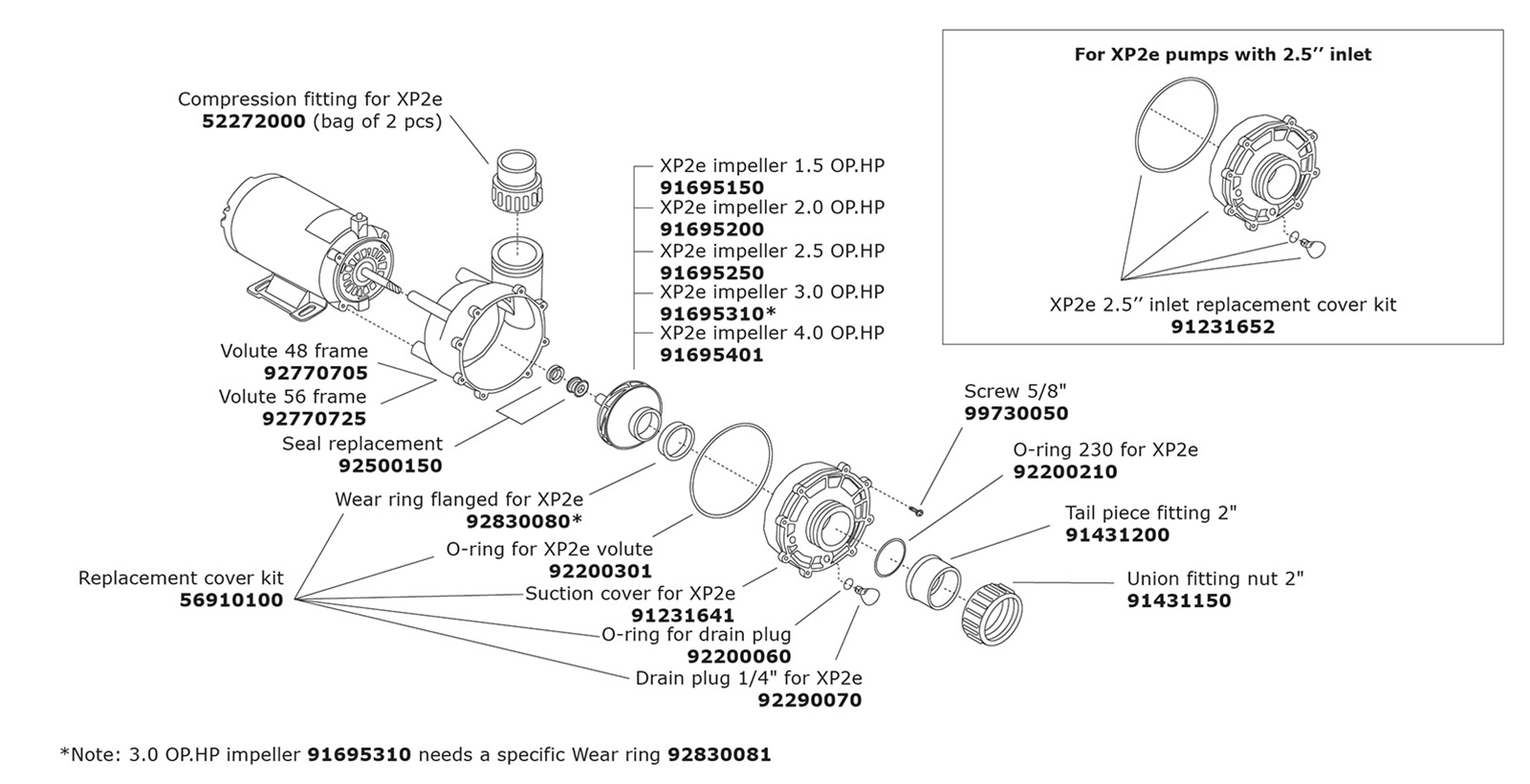

Aqua-Flo Flo-Master XP2e Pump Parts

Details:
Aqua Flo Item Number 52272000
2" x 2"
Set of 2
Used On Aqua-Flo Flo-Master XP2e Pumps
Used On Aqua-Flo Flo-Master XP2 Pumps

Details:
Aqua Flo Item Number 91431150
2"
Used On Aqua-Flo Flo-Master XP2e Pumps
Used On Aqua-Flo Flo-Master XP2 Pumps
Used On Aqua-Flo Flo-Master FM-HP & FM-CP Pumps
Used On Aqua-Flo Circ-Master CM-HP & CM-CP Pumps

Details:
Aqua Flo Item Number 91431200
2"
Used On Aqua-Flo Flo-Master XP2e Pumps
Used On Aqua-Flo Flo-Master XP2 Pumps
Used On Aqua-Flo Flo-Master FM-HP & FM-CP Pumps
Used On Aqua-Flo Circ-Master CM-HP & CM-CP Pumps

Details:
Aqua Flo Item Number 91695150
Used On Aqua-Flo Flo-Master XP2e Pumps

• 1.5 OP.HP

Replacement Impeller for these Aqua-Flo Spa Pumps:

1-1/2HP:
05015001-2040, 05015002-5040, 05015003-5340, 05015005-1000, 05015081-2300, 05015081-2340, 05015500-2000, 05015558-1340, 05015959-1340, 05015964-1301, 05015964-1340, 05115001-2300, 05115001-2340, 05115002-2300, 05115003-2340, 05115004-2000, 05115004-2300, 05115005-2040, 05115005-2340, 05115006-2300, 05115006-2340, 05115007-2340, 05115008-2340, 05115008-5340, 05115009-2340, 05115459-2040, 05115459-2300, 05115761-2000, 05115761-2040, 05115792-2370, 05115894-2300, 05215000-7340, 05215001-7340, 05215500-2000, 05215737-2000, 05315000-7340, 05315001-7370, 05315761-2000, 05315761-2040, 05515000-2300, 05515000-2340, 05515558-2340, 05515661-1300, 05515684-2340, 05515880-1300, 05615001-2300, 05615001-2340, 05615002-2340, 05615003-2000, 05615003-2300, 05615004-2340, 05615005-2340, 05615006-2340, 05615007-2300, 05615008-2340, 05615316-1300, 05615316-1340, 05615316-2300, 05615316-2340, 05615319-2040, 05615319-2300, 05615319-2340, 05615319-2381, 05615459-2300, 05815000-1040, 05815000-1340, 05815001-7340, 05815002-7340, 05815003-7340, 05815004-1040, 05815510-2340

Details:
Aqua Flo Item Number 91695200
Used On Aqua-Flo Flo-Master XP2e Pumps

• 2.0 OP.HP

Replacement Impeller for these Aqua-Flo Spa Pumps:

1-1/2HP:
05020701-1340, 05020957-1340, 05020971-1301, 05020971-1340, 05220939-6340, 05220958-6340, 05220970-6301, 05220970-6340, 05320000-6300, 05320001-6300, 05320007-6040, 05320007-6340, 05320008-6040, 05320010-6340, 05320012-8340, 05320013-8300, 05320002-6340, 05320858-6300, 05320917-6040, 05320917-6300, 05320917-6340, 05320988-6340

2HP:
05020400-2040, 05020737-2000, 05120000-2040, 05120000-2300, 05120001-2040, 05120001-2340, 05120002-2300, 05120608-2300, 05120761-2000, 05120761-2040, 05220001-2040, 05220001-2340, 05220002-2040, 05220002-2340, 05220400-7040, 05220737-2000, 05320001-7340, 05320003-2040, 05320003-2340, 05320004-2040, 05320004-2340, 05320005-1340, 05320008-2300, 05320008-2340, 05320008-7300, 05320009-7340, 05320011-7040, 05320306-1340, 05320761-2040, 05520000-2300, 05520000-2340, 05520001-2340, 05520002-2340, 05520003-5340, 05520004-2300, 05520092-1340, 05620001-2300, 05620001-2340, 05620002-2040, 05620003-2040, 05620003-2340, 05620004-2000, 05620004-2300, 05620005-2340, 05620006-5340, 05620007-2300, 05620256-1340, 05620374-2340, 05620485-2340, 05620489-2340, 05720000-7340, 05720001-1340, 05720003-7340, 05820000-1340, 05820000-2340, 05820001-2300, 05820002-2300, 05820003-2040, 05820003-2340, 05820004-7340, 05820005-7340, 05820006-7340, 05820007-1340, 05820397-7340, 05820782-2340

Details:
Aqua Flo Item Number 91695250
Closed Face
Number Of Vanes: 6
Outside Diameter:       4-1/8"  Shaft Side
Thickness: 5/8"    (Outside Thickness At Outside Edge)
Thickness: 13/32"  (Inside Thickness At Outside Edge)
Front To Back: 3-1/4" (From End Of Shaft To Front On Intake)
Inlet Inside Diameter: 2-3/8"
Inlet Outside Diameter: 2-9/16"
There Is An Additional Inlet Inside The Main Inlet That Is 2" Outside Diameter
Shaft Cover Length: 1-5/8"
Shaft Cover Od: 5/8" (This Is Where The Impeller Screws Onto The Motor Shaft)
Markings:
There Is A White And A Silver Dot On The Shaft Near The End
"2.5Hp - 2250" Is Molded On The Face

Used On Aqua-Flo Flo-Master XP2e Pumps

• 2.5 OP.HP

Replacement Impeller for these Aqua-Flo Spa Pumps:

1-1/2HP:
05015684-2300

2-1/2HP:
05025737-2000, 05125000-2340, 05125001-2040, 05125001-2340, 05125002-2340, 05125761-2000, 05125761-2040, 05225000-7300, 05225427-2300, 05225427-7300, 05225428-2300, 05225428-7300, 05225737-2000, 05225980-2300, 05325000-7340, 05325001-2300, 05325002-2340, 05325003-2300, 05325450-2340, 05325761-2000, 05325761-2300, 05525000-2340, 05525000-2370, 05525434-2340, 05525661-1300, 05525794-2340, 05525794-2370, 05625000-2040, 05625001-2040, 05625002-2340, 05625003-2070, 05625003-2370, 05625287-1300, 05625356-2370, 05625357-2370, 05625387-2070, 05625387-2370, 05625489-2340, 05625894-1300, 05725001-2040, 05725002-2040, 05725002-2340, 05725003-2340, 05725004-2000, 05725004-2300, 05725004-2340, 05725005-2340, 05725006-7340, 05725007-2361, 05725008-2370, 05725009-7370, 05725354-2340, 05725354-2370, 05725363-2370, 05725414-2370, 05825000-2340, 05825001-2340, 05825002-2040, 05825002-2340, 05825003-2340, 05825004-2000, 05825004-2300, 05825004-2340, 05825004-2381, 05825005-2040, 05825005-2340, 05825006-2340, 05825007-2000, 05825007-2300, 05825008-2300, 05825009-2300, 05825010-2361, 05825011-7300, 05825012-7340, 05825014-7340, 05825015-7300, 05825016-7370, 05825017-7340, 05825018-7040, 05825019-7300, 05825020-7370, 05825021-2340, 05825309-2340, 05825316-2340, 05825352-2370, 05825352-7370, 05825489-2040, 05825489-2340, 05825489-5040, 05825489-7340, 05825685-2300, 05825778-2340, 05825892-2000, 05825892-2040, 05825892-2060, 05825892-2300, 05825892-2340, 05825892-2360

3HP:
05725794-7040

Details:
Aqua Flo Item Number 91695317 was 91695310

Used On Aqua-Flo Flo-Master XP2e Pumps

• 3.0 OP.HP

Replacement Impeller for these Aqua-Flo Spa Pumps:

2HP:
05534000-1361

3HP:
05230366-2300, 05234001-2300, 05234002-2340, 05234002-7040, 05330001-2300, 05330002-1300, 05330002-2040, 05330002-2300, 05330002-2340, 05330306-1340, 05330309-2300, 05330883-2300, 05334001-2300, 05334002-7300, 05334003-2300, 05334004-2340, 05334004-7040, 05334005-2340, 05334006-7040, 05334007-2300, 05334008-7300, 05334010-1340, 05334011-2300, 05634000-2340, 05730000-2340, 05734000-2340, 05734001-2361, 05734002-2000, 05734002-2300, 05734003-7361, 05734004-5340, 05734004-7340, 05734005-7300, 05830001-2300, 05830001-7300, 05830002-1340, 05830002-2340, 05830003-2340, 05830703-2300, 05834001-2040, 05834001-2340, 05834001-7040, 05834002-2300, 05834002-2340, 05834003-2340, 05834004-1040, 05834004-1340, 05834005-2300, 05834005-2340, 05834006-2300, 05834006-2340, 05834007-2340, 05834008-2340, 05834008-2361, 05834008-7061, 05834009-2340, 05834010-2340, 05834011-2040, 05834011-2340, 05834012-7340, 05834013-7340, 05834014-7340, 05834015-7340, 05834016-7340, 05834017-7340, 05834018-7300, 05834019-7300, 05834020-2300, 05834020-5300, 05834021-2300, 05834021-5300, 05834021-7300, 05834022-2340, 05834023-2340, 05834024-7340, 05834025-5040, 05834025-5340

Details:
Aqua Flo Item Number 91695401
Used On Aqua-Flo Flo-Master XP2e Pumps

• 4.0 OP.HP

Replacement Impeller for these Aqua-Flo Spa Pumps:

4HP:
05242000-2340, 05242001-2340, 05242002-2040, 05242002-2340, 05242003-2340, 05242003-2370, 05242004-2300, 05242372-2340, 05242372-2370, 05242376-2370, 05342000-2340, 05342001-2040, 05342001-2340, 05342002-2340, 05342003-2340, 05342003-2370, 05342004-2300, 05342365-2340, 05342365-2370, 05342379-2370, 05342792-2340, 05742372-2340

Details:
Aqua Flo Item Number 92200060
Used On AquaFlo Flo-Master XP3 Pumps
Used On Aqua-Flo Flo-Master XP2e Pumps
Used On Aqua-Flo Flo-Master XP2 Pumps

Details:
Aqua Flo Item Number 92200210
Used On Aqua-Flo Flo-Master XP2e Pumps
Used On Aqua-Flo Flo-Master XP2 Pumps
Used On Aqua-Flo Flo-Master FM-HP & FM-CP Pumps
Used On Aqua-Flo Circ-Master CM-HP & CM-CP Pumps

Details:
Aqua Flo Item Number 92200301
Used On Aqua-Flo Flo-Master XP2e Pumps
Used On Aqua-Flo Flo-Master XP2 Pumps

Details:
Aqua Flo Item Number 92290070
Formerly 92200070
1/4"
Used On AquaFlo Flo-Master XP3 Pumps
Used On Aqua-Flo Flo-Master XP2e Pumps
Used On Aqua-Flo Flo-Master XP2 Pumps

Details:
Aqua Flo Item Number 92830080
Used On AquaFlo Flo-Master XP3 Pumps
Used On Aqua-Flo Flo-Master XP2e Pumps

Details:
Aqua Flo Item Number 92830081
Used On Aqua-Flo Flo-Master XP2e Pumps

• 3.0 OP.HP

Details:
Aqua Flo Item Number 99730050
8/32 X 5/8
Used On AquaFlo Flo-Master XP3 Pumps
Used On Aqua-Flo Flo-Master XP2e Pumps
Used On Aqua-Flo Flo-Master XP2 Pumps
Used On Aqua-Flo Flo-Master FM-HP & FM-CP Pumps
Used On Aqua-Flo Circ-Master CM-HP & CM-CP Pumps

Details:
Aqua Flo Item Number 91041815-000
2” Intake & 2” Side Discharge
Used On Aqua-Flo Flo-Master XP2e Pumps

• 48 Frame 1.5 OP HP

Used On Aqua-Flo Flo-Master XP2 Pumps

• 48 Frame 1.5 OP HP

Details:
Aqua Flo Item Number 91041820-000
2” Intake & 2” Side Discharge
Used On Aqua-Flo Flo-Master XP2e Pumps

• 48 Frame 2 OP HP

Used On Aqua-Flo Flo-Master XP2 Pumps

• 48 Frame 2 OP HP

Details:
Aqua Flo Item Number 91041825-000
2” Intake & 2” Side Discharge
Used On Aqua-Flo Flo-Master XP2e Pumps

• 48 Frame 2.5 OP HP

Used On Aqua-Flo Flo-Master XP2 Pumps

• 48 Frame 2.5 OP HP

Details:
Aqua Flo Item Number 91041830-000
2” Intake & 2” Side Discharge
Used On Aqua-Flo Flo-Master XP2e Pumps

• 48 Frame 3 OP HP

Used On Aqua-Flo Flo-Master XP2 Pumps

• 48 Frame 3 OP HP

Details:
Aqua Flo Item Number 91041915-000
2” Intake & 2” Side Discharge
Used On Aqua-Flo Flo-Master XP2e Pumps

• 56 Frame 1.5 OP HP

Used On Aqua-Flo Flo-Master XP2 Pumps

• 56 Frame 1.5 OP HP

Details:
Aqua Flo Item Number 91041920-000
2” Intake & 2” Side Discharge
Used On Aqua-Flo Flo-Master XP2e Pumps

• 56 Frame 2 OP HP

Used On Aqua-Flo Flo-Master XP2 Pumps

• 56 Frame 2 OP HP

Details:
Aqua Flo Item Number 91041925-000
2” Intake & 2” Side Discharge
Used On Aqua-Flo Flo-Master XP2e Pumps

• 56 Frame 2.5 OP HP

Used On Aqua-Flo Flo-Master XP2 Pumps

• 56 Frame 2.5 OP HP

Details:
Aqua Flo Item Number 91041940-000
2” Intake & 2” Side Discharge
Used On Aqua-Flo Flo-Master XP2e Pumps

• 56 Frame 4 OP HP

Used On Aqua-Flo Flo-Master XP2 Pumps

• 56 Frame 4 OP HP

Details:
APCAS200 | Generic Replacement Pump Shaft Seal
Aftermarket Number: AS-200
Compatible with Hayward SPX1250XZ2C
Compatible with Hayward SPX1250XZ2
Compatible with Aqua-Flo 92500150
Used On Aqua-Flo Flo-Master XP2 Pumps
Used On Aqua-Flo Flo-Master FM-HP & FM-CP Pumps
Used On Aqua-Flo Circ-Master CM-HP & CM-CP Pumps
