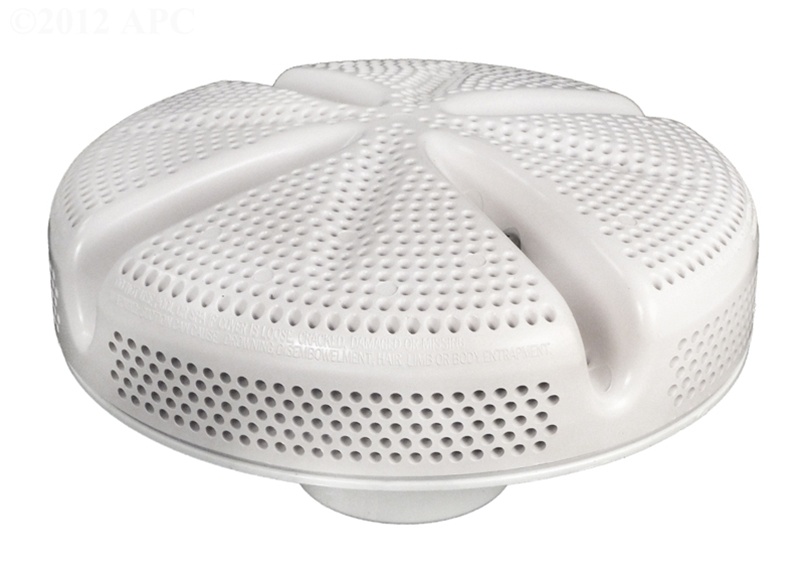

Waterway 6 Inch Ultra Suction and Equalizer Fittings

FEATURES:
• Sumpless Design: no sump body required
• Ultra versatile drain - can be used for a wide variety of applications: Gunite, Fiberglass, Tile, and Steel Pools & Spas
• All Waterway adapter fittings are made of NSF Rated PVC and can be used with PVC cements (no expensive ABS/PVC transitional glue)
• Available with 6 different PVC wall fitting adapters for connection through:
- 1", 1 ½" and 2" Slip
- 1 ½", 2" and 2 ½" Threaded
- 1 ½" and 2" Insider

SPECIFICATIONS:
• Total Open Area: 10.2 sq. in.
• Floor Flow Rate: N/A
• Wall Flow Rate: 191 GPM @ 6.02 ft/sec with 215-8200 & 215-8230
• Wall Flow Rate: 136 GPM @ 4.30 ft/sec with 215-8220 & 215-8210
• Wall Flow Rate: 77 GPM @ 2.43 ft/sec with 215-8240 & 215-8250
• Flow Rate @ 1.5 ft/sec: 47 GPM
